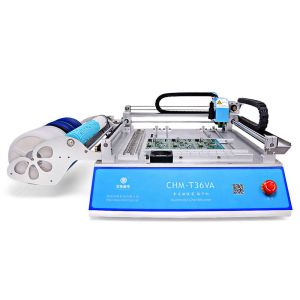

| Dimensions | 940mm(L)×710mm(W)×340mm(H) |
| Weight | 39kg |
| Power Supply | AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 300W |
| Air Supply | No external air supply required |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 2 |
| Mounting Speed | 6000cph(optimalwithout vision detection); 2500cph (optimal with vision detection) |
| Control Accuracy | 0.025mm |
| Component Type | 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～345mm(L)×360mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System | External computer required (Windows) |
| Drive System | X&Y-axis driven by stepping motors in the way of closed-loop control realized by encoder; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported |
| Transmission System | Synchronous belt+polished rod |
| Feeding System | 29 tape feeding stacks(8mm:22,12mm:4,16mm:2,24mm:1；customization supported), 14 preset general IC stacks, worksurface custom IC trays and stick feeder supported |
| Vision System | Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCBcalibration via Mark Point and component positioning |
Clients & Exhibitions
Certificates
FAQ
1. Who are we?
We are based in Hunan, China, starting from 2009,sell to Domestic Market(45.00%), North America(10.00%), Southeast Asia(8.00%), Western Europe(8.00%), South America(7.00%), Oceania(4.00%), South Asia(4.00%), Eastern Asia(3.00%), Northern Europe(3.00%), Africa(2.00%), Central America(2.00%), Southern Europe(2.00%), Eastern Europe(1.00%), Mid East(1.00%).
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3.What can you buy from us?
Pick and place machine, smt production line, stencil printer, reflow oven, cnc machine.
4. Why should you buy from us not from other suppliers?
Hunan Charmhigh Electromechanical Equipment Co., Ltd. has been a modern science and technology enterprise fully capable of research&development, manufacturing, and marketing of pick and place machine as well as SMT peripheral equipment for over 12 years.
5. What services can we provide?
Accepted Delivery Terms: FOB, EXW； Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T,Credit Card,Cash; Language Spoken: English, Chinese.
Warranty
1)The complete machine has a warranty period of 1 year from the time of purchase and lifelong service support as well as a long term factory price supply.
2)We provide online Q/A, troubleshooting support, technical advice and one to one after-sale service.
3)Each machine 100% test well before ship out. You can place an order with confidence!
