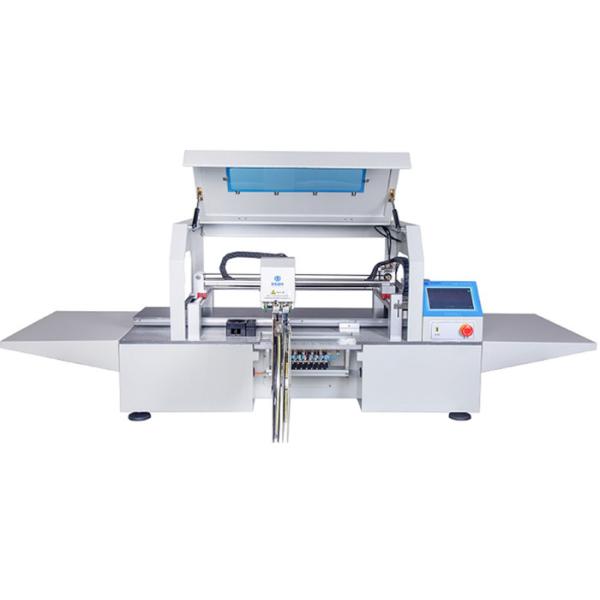

0.5MPa 8 Feeders SMT Pick And Place Machine SMD Assembly Machine

Product Categories

HUNAN CHARMHIGH ELECTROMECHANICAL EQUIPMENT CO., LTD.

Contact Now

Name: 05MPa 8 Feeders SMT Pick And Place Machine SMD Assembly Machine
Brand: Charmhigh
Price: 1 USD

Brand Name : Charmhigh

Model Number : chm-T510p4

Place of Origin : Hunan, China (Mainland)

MOQ : 1/PCS

Price : Negotiable Price

Payment Terms : L/C, D/P, T/T

Supply Ability : 20pcs/days

Delivery Time : 1-5 work days

Packaging Details : plywood box with strong foam package

Dimensions : 2060mm(L)×605mm(W)×700mm(H)

Weight : 145kg

Air Supply : 0.5MPa ~0.7MPa

Vacuum Generation : Built-in vacuum pump

Mounting Head Quantity : 4

PCB Thickness : 0.6mm~3.5mm

PCB Size : 10mm(L)×10mm(W)～1200mm(L)×240mm(W)

PCB Conveying : Manual operation

Control System : Built-in computer (embedded Linux operating system), 7-inch touch screen

Transmission System : Synchronous belt+linear guide

Contact Now

0.5MPa 8 Feeders SMT Pick And Place Machine SMD Assembly Machine

CHM-T510LP4Specifications
Dimensions	2060mm(L)×605mm(W)×700mm(H)
Weight	145kg
Power Supply	AC220V (50Hz, single phase)/AC110V (60Hz, single phase);400W
Air Supply	0.5MPa ~0.7MPa
Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	4
Mounting Speed	11000cph(optimalwithout vision detection); 5500cph (optimal with vision detection)
Control Accuracy	0.015mm
Component Type	0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness	0.6mm~3.5mm
PCB Size	10mm(L)×10mm(W)～1200mm(L)×240mm(W)
PCB Conveying	Manual operation
Nozzle Change	Manual operation
Control System	Built-in computer (embedded Linux operating system), 7-inch touch screen
Drive System	X&Y-axisdriven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration
Transmission System	Synchronous belt+linear guide
Feeding System	8 Yamaha standard pneumatic feeder stacks, Yamaha electric feeder supported
Vision System	Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning

0.5MPa 8 Feeders SMT Pick And Place Machine SMD Assembly Machine
