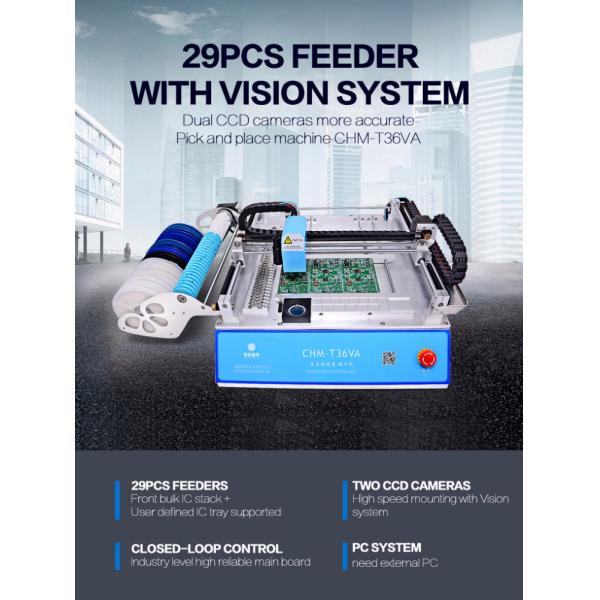

Small Batch Proofing Production Line Charmhigh CHM-T36VA 3.5mm Desktop SMT Pick And Place Machine
| CHM-T36VASpecifications |
| Dimensions | 940mm(L)×710mm(W)×340mm(H) |
| Weight | 39kg |
| Power Supply | AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 300W |
| Air Supply | No external air supply required |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 2 |
| Mounting Speed | 6000cph(optimalwithout vision detection); 2500cph (optimal with vision detection) |
| Control Accuracy | 0.025mm |
| Component Type | 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～345mm(L)×360mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System | External computer required (Windows) |
| Drive System | X&Y-axis driven by stepping motors in the way of closed-loop control realized by encoder; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported |
| Transmission System | Synchronous belt+polished rod |
| Feeding System | 29 tape feeding stacks(8mm:22,12mm:4,16mm:2,24mm:1；customization supported), 14 preset general IC stacks, worksurface custom IC trays and stick feeder supported |
| Vision System | Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCBcalibration via Mark Point and component positioning |
Machine features and advantages:
With Vision system need to connect with an external PC with windows7 system and USB port.
With closed loop control. can move more faster and smoothly
with 29pcs feeders, more effective
with 8 kinds of different nozzles, can place with 0201, 0402. 0603, 0805-505etc, and QFN, SOP, LQFP. all kinds of IC. and diode, triode.
with Z axis detection can self-checking the height and angle during placement. can make sure this machine work well with various kinds of components.
Material stack
This SMT machine will be tested well before ship out.
Tools and manuals are complete included in the package.
Each machine 100% test well before ship out.
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service.
Support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service.
